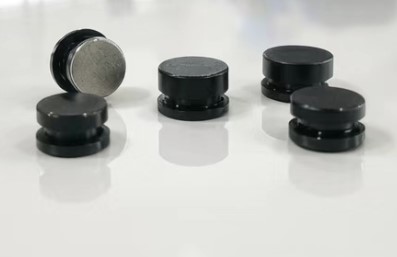

Silicon Nitride Ceramic Rotors: A Key Enabler for Hydrogen Recirculation Pumps

In fuel cell systems, the hydrogen recirculation pump plays a role often described as the system’s “heart,” responsible for recycling unreacted hydrogen and maintaining thermal and water balance. Its performance directly determines system efficiency and durability. However, conventional metallic rotors suffer from hydrogen embrittlement, corrosion, and wear under high-speed operation in humid hydrogen environments.

Silicon nitride (Si₃N₄) ceramics have emerged as an ideal solution due to their unique combination of mechanical, thermal, and chemical properties. With a fracture toughness of 6–8 MPa·m¹ᐟ² and flexural strength up to 800 MPa, silicon nitride effectively resists crack propagation under vibration and particle impact. Its high hardness (1500–2100 HV) ensures excellent wear resistance in particle-laden hydrogen streams, significantly extending rotor lifetime.

From a thermal perspective, its low coefficient of thermal expansion (~3.0×10⁻⁶/°C) closely matches stainless steel, minimizing thermal stress and improving system reliability. Silicon nitride also maintains structural integrity at temperatures up to 800°C in hydrogen environments, with short-term resistance exceeding 1400°C.

Chemically, it forms a dense SiO₂ passivation layer in hydrogen or humid atmospheres, preventing hydrogen-induced degradation—an advantage over metals and carbon-based materials. Its inertness to acidic or alkaline media further enhances durability in complex operating conditions.

Compared with other ceramics, silicon nitride achieves the best balance: tougher than alumina, more cost-effective than silicon carbide, and more stable than zirconia. This makes it a high-performance, cost-efficient choice for hydrogen recirculation pump rotors.

As the hydrogen economy expands, the demand for high-reliability components is accelerating. Silicon nitride ceramic rotors not only extend service life by up to five times compared to traditional alloys but also enable hydrogen utilization rates above 95%, making them a critical material innovation for next-generation energy systems.
